The "Eagle Eyes" of Industrial Intelligence: Analysis and Application of Label Visual Inspection Technology
#label vision inspection of bottles
On the high-speed, intelligent production line, an invisible technology is silently safeguarding the last line of defense for product quality with millimeter-level precision and fractional-second speed.
The first rays of morning sunlight illuminate the modern factory workshop, and the production line has already begun its orderly operation. Not long ago, label inspection on the assembly line required workers to meticulously monitor each product and manually verify information. Today, automated inspection systems based on machine vision are accurately identifying, comparing, and judging label information at a rate of hundreds of times per minute.
This transformation not only liberates manpower but also significantly improves the accuracy and efficiency of inspection. Visual inspection technology has become an indispensable and crucial component of industrial automation, playing a pivotal role in label inspection.
1. Technological Foundation: The Basic Principles of Machine Vision and Image Processing
Machine vision, simply put, is a technological system that uses computers to simulate human visual functions. It converts the target into an image signal through an image acquisition device (such as a CMOS or CCD camera), transmits it to a dedicated image processing system, and acquires the target's morphological information.
A complete label visual inspection system typically comprises three core components: image acquisition, image processing, and motion control.
Image acquisition is the first and most fundamental step. At this stage, the design of the lighting equipment is crucial, directly impacting the CCD camera's ability to acquire high-quality image information. Appropriate lighting can highlight label features and reduce the complexity of subsequent processing.
Image processing is the brain of the entire system. The acquired image undergoes preprocessing operations such as grayscale correction, smoothing, and binarization to enhance useful information and suppress irrelevant noise. Subsequently, the system uses edge detection, contour extraction, and other methods to obtain the label's key features.
Image analysis is the final decision-making stage. The system extracts feature parameters (such as area, quantity, position, and length) from the processed image and outputs a judgment result based on a preset tolerance. The accuracy and speed of this process directly determine the overall system performance.
2. Core Technologies: Key Technical Paths for Label Visual Inspection
Modern label visual inspection systems employ various advanced technologies to adapt to different application scenarios and accuracy requirements.
Contour extraction and defect recognition are fundamental technologies for label inspection. As illustrated in a 2023 patent, the system uses the Canny operator for edge detection, extracting the outer contour of the label. It then converts the contour points into Fourier descriptors, extracting features such as average radius, concavity/convexity, and symmetry. These features are compared with standard labels, and similarities and differences are assessed by calculating Euclidean distance, thus accurately identifying defects.
Gray-Level Co-occurrence Matrix (GLCM) analysis is used to detect the texture features of the label. The system converts the image into a single channel, selects an appropriate direction and pixel spacing based on the woven label orientation to calculate the co-occurrence matrix, and then analyzes the uniformity and texture coarseness of the image. This method is particularly effective in detecting subtle defects such as loose threads and broken yarns.
The application of deep learning technology has greatly improved detection capabilities in complex scenes. Traditional OCR algorithms are suitable for scenes with standardized fonts and clear printing, while deep learning OCR algorithms excel at handling scenes with varied fonts, slight distortions, or complex backgrounds. Although the latter requires a large number of samples for model training, its generalization ability is significantly better than traditional methods.
Mesh path connectivity analysis is another innovative technology. This method determines the presence of a label by detecting specific grayscale units at the four corners of the label image and judging whether these units are connected by paths formed by connecting units of the same grayscale value. This method improves the accuracy and coding space of label detection.
3. Technological Evolution: From Traditional Inspection to Intelligent Diagnosis
Label visual inspection technology has not developed overnight; its development has evolved from simple to complex, and from single-function to system integration.
Traditional label inspection mainly relied on manual labor, which could only meet the needs of small-batch production, was inefficient, and had unsatisfactory detection accuracy. With the rise of machine vision technology, image processing-based automatic inspection systems have gradually replaced manual inspection.
Early-generation automatic inspection systems mainly achieved basic positioning and character recognition functions. With technological advancements, modern inspection systems can now achieve multi-functional integrated inspection, including label presence detection, character recognition, defect detection, and position detection.
In recent years, with the development of artificial intelligence technology, label visual inspection has entered the era of intelligence. The latest inspection systems can not only detect defects but also predict quality trends based on historical data and even automatically adjust production process parameters.
Significant leaps have been made in inspection accuracy and speed. Early vision inspection systems could only process a few dozen labels per minute, while modern high-speed inspection systems are designed to process over 140 labels per minute, with accuracy far exceeding manual inspection.
4. Application Scenarios: Multi-Field Practices of Label Visual Inspection
Label visual inspection technology has been widely applied across various industries, becoming a crucial link in ensuring product quality.
In the pharmaceutical industry, the accuracy of label information is directly related to medication safety. Visual inspection systems can automatically verify product codes, batch numbers, dates, and other information on drug labels to ensure that paired labels are completely consistent. If any mismatch is detected, the system will immediately issue an alarm, prompting the operator to take action.
In the electronics manufacturing industry, label visual inspection is used to check whether product identification conforms to specifications. The system can read extremely small serial numbers and production batch numbers, ensuring that each product has a unique and correct identification.

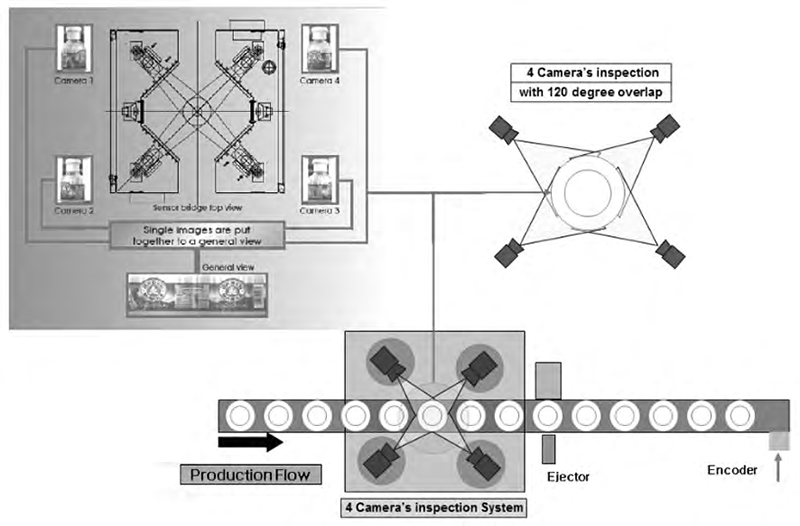

The food and beverage industry also benefits from this technology. On high-speed filling production lines, vision inspection systems can check for misplaced, missing, or damaged labels on bottles, ensuring the appearance quality of each bottle.
In logistics and supply chain management, label inspection systems are responsible for verifying the accuracy of information on shipping labels to prevent shipping errors. The system can recognize various barcodes and QR codes to ensure the correct transmission of logistics information.
5. Implementation Strategy: Key Factors in Building an Efficient Label Visual Inspection System
Successfully implementing a label visual inspection system requires comprehensive consideration of multiple factors. The following are some key practical points:
Image acquisition quality is fundamental. Appropriate CCD cameras and lenses must be selected, and a reasonable lighting system must be designed. In dynamic label inspection, motion blur issues also need to be addressed, and corresponding recovery methods should be used to process the input image.
Algorithm selection requires a trade-off between performance and requirements. For scenarios with standardized fonts and clear printing, traditional OCR algorithms are fast and stable; however, for scenarios with variable fonts or slight distortions, deep learning OCR algorithms are more advantageous.
System integration must consider the actual production environment. Industrial machine vision needs to adapt to potentially harsh environments in production, possess reasonable cost-effectiveness, universal industrial interfaces, and be operable by ordinary workers. High fault tolerance and security are also essential.
Environmental control cannot be ignored. To ensure stable system operation, the lighting conditions of the production environment must be controlled to avoid interference from other light sources. Simultaneously, it must be ensured that the label surface is free of stains, wrinkles, coverings, and other impurities.
6. Challenges and Prospects: The Future Path of Label Visual Inspection Technology
Despite significant progress in label visual inspection technology, several challenges and development opportunities remain.
Detection accuracy in complex backgrounds is currently a major challenge. When the label surface has wrinkles, bends, or partial occlusion, even advanced detection algorithms may make false judgments. Solving this problem requires more advanced deep learning models and larger training datasets.
Balancing real-time requirements with technical complexity is also a challenge. Industrial inspection demands extremely high speed, while complex image processing algorithms require substantial computing resources. Edge computing and cloud computing working together may be the future solution.
Adaptability to diverse label materials is another challenge. Different industries use various label materials; special materials such as metal labels and transparent labels place higher demands on imaging systems. Multispectral imaging technology is expected to play a crucial role in these special application scenarios.
Looking to the future, label visual inspection technology will evolve towards greater intelligence, integration, and flexibility. Deep learning-based inspection algorithms will become more widespread; the integration of vision systems with other production systems will be higher; and flexible inspection systems capable of adapting to multi-variety, small-batch production will become a trend.
With the arrival of Industry 4.0, visual inspection technology is deeply integrating with technologies such as the Internet of Things, big data, and artificial intelligence. Future label inspection systems will not only be quality gatekeepers but also process optimizers.
By analyzing vast amounts of inspection data, the system can predict equipment failure trends, automatically adjust production process parameters, and form a self-optimizing intelligent cycle. These data assets will also support enterprise decision-making, helping to optimize production processes, reduce quality risks, and enhance overall competitiveness.
Unbeknownst to many, label visual inspection has evolved from a single quality inspection tool into a crucial link in the intelligent manufacturing ecosystem. It silently safeguards the production line, witnessing the quality improvement and upgrading of China's manufacturing industry with its digital "eyes."
