Pull Ring Cover Inspection Machine Keeps Fast Canning Lines Stable
For canned beverage producers, maintaining impeccable cap quality isn't just a final check; it's a critical factor that impacts the entire production chain. Indeed, once a defective can moves past the seamer, every subsequent meter of conveyor increases the risk of costly waste, rework, or instability in downstream packaging. Our advanced Pull Ring Cover Inspection Machine, model Pull Ring Cover Inspection Machine, is specifically engineered for online can cap inspection, operating at blistering speeds of up to 60,000 cans per hour. This system seamlessly integrates non-contact detection, comprehensive 360° cap coverage, sophisticated image processing, and immediate automatic rejection into one efficient line-side workflow.
Seamless Integration: Where Our Inspection Machine Fits on Your Line
The Pull Ring Cover Inspection Machine is a vital component in modern canned beverage production lines. It's designed to inspect and automatically reject any can caps that don't meet our stringent quality standards. For optimal and stable operation, we recommend installing the system on a 1.5–2 meter straight conveyor section immediately downstream of the sealing machine. This strategic placement allows our system to meticulously inspect caps shortly after sealing, while also providing ample distance for precise product tracking and effective rejection.
During operation, a positioning sensor accurately detects each incoming can. Our control unit records its unique identification and encoder signal, then precisely triggers the digital camera. The captured images are then transmitted to our powerful image processor, which rigorously analyzes the cap's condition. The real-time results are dynamically displayed on our intuitive HMI and relayed back to the control unit. Should a defective cap be identified, the corresponding can is promptly tracked and removed by our high-precision rejector. This streamlined workflow ensures that our Pull Ring Cover Inspection Machine provides immediate, automated rejection, eliminating the need for time-consuming manual sorting.
Core Capabilities: Defects Our System Identifies
Our Pull Ring Cover Inspection Machine model is specifically engineered to detect three crucial cap inspection items that are commonly associated with canned beverage quality control. These include:
| Inspection Item | Detection Condition | Standard Rejection Rate | False Detection Rate |
|---|---|---|---|
| Missing cap | No cap detected | ≥99.99% | ≤0.03% |
| Cap angle deviation | Deviation angle ≥5° | ≥99.9% | ≤0.03% |
| Cap pop-up | Deviation value ≥1 mm | ≥99.9% | ≤0.03% |

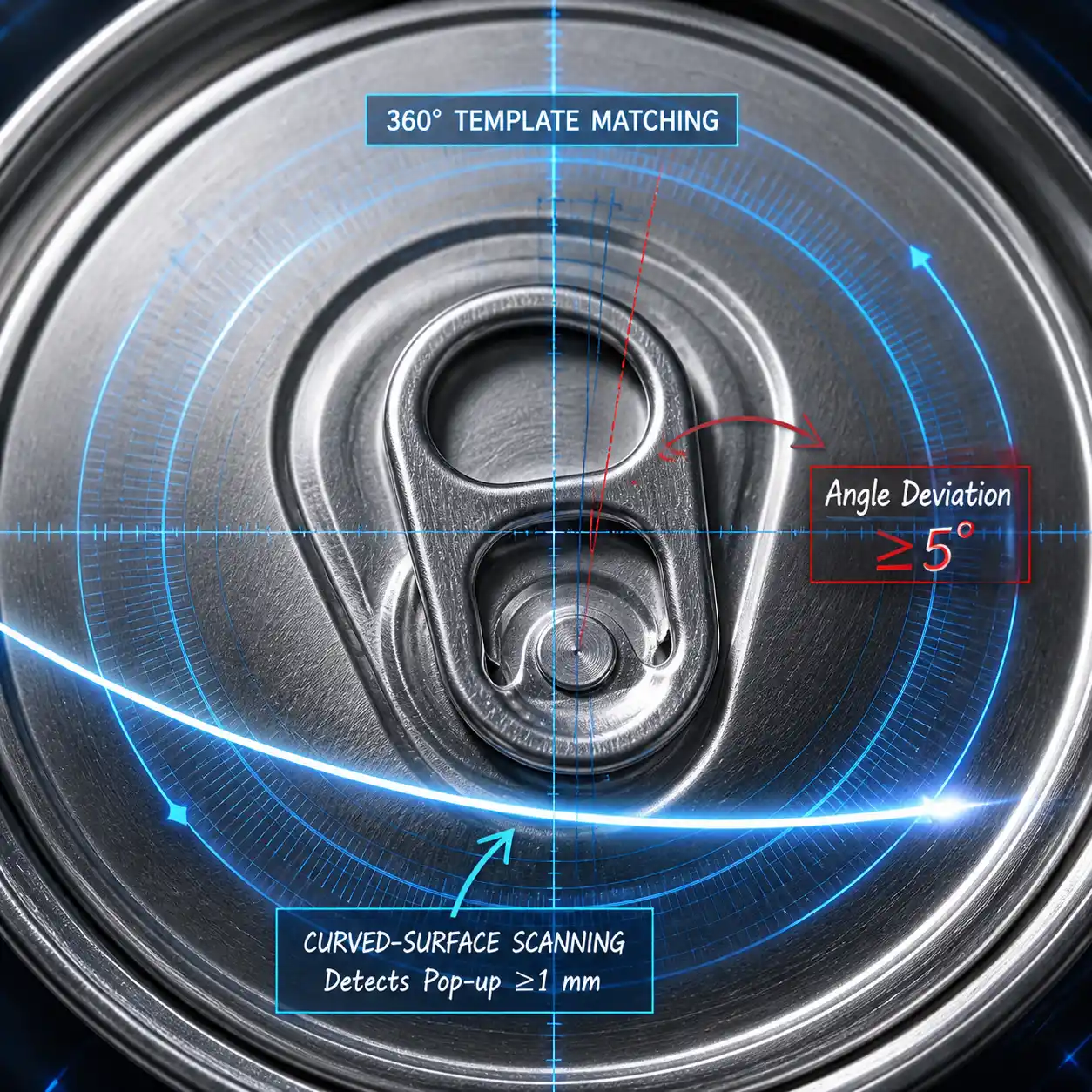

For precise cap angle inspection, our Gigabit Ethernet digital camera captures crystal-clear, top-down images of each can cap. The system then applies our proprietary 360° template matching algorithm to accurately evaluate whether the cap angle meets the specified requirements. Meanwhile, for cap pop-up detection, our advanced curved-surface scanning technology continuously monitors subtle changes across the upper cap surface. This includes detecting conditions often associated with can expansion or internal air leakage, ensuring comprehensive integrity checks.
It's worth noting that the listed accuracy values are our standard figures. In real-world production environments, final inspection performance can sometimes be influenced by the specific condition of the cap and the degree of jitter present on the production line. That's why we emphasize the importance of conveyor stability and product consistency during the commissioning phase to achieve the best results.
Advanced Features for Uninterrupted Production
Our Pull Ring Cover Inspection Machine is engineered to do more than simply identify obvious defects. On a high-speed production line, it's crucial for the system to support stable operation, provide practical data review, and ensure controlled rejection behavior. The MT-YLG-PG-C1 utilizes non-contact online inspection, meaning your product is never physically damaged during the checking process.
Its IP65 safety protection rating ensures robust performance even in demanding industrial environments. Furthermore, an industrial-grade cooling system works tirelessly to minimize malfunctions and reduce downtime, especially during extended operation in warmer conditions. We also incorporate customized light sources to effectively mitigate interference from various cap and pull-ring colors, ensuring consistent detection accuracy.
Our machine supports automatic storage of defective cap images, with adjustable retention times for thorough quality reviews and process analysis. The multi-level HMI access empowers your production teams to manage operational permissions securely, while 24/7 remote monitoring and service support ensure rapid technical response whenever line conditions require attention. Moreover, the system includes a continuous-rejection shutdown feature: if rejected products reach a predefined quantity, the line automatically stops. This clever function prevents repeated defective output from continuing unnoticed, saving valuable resources. For plants considering a 360° Pull Ring Inspection Machine, this comprehensive blend of inspection, tracking, archiving, and rejection capabilities makes our system a compelling choice.
Your Selection Checklist for Peak Performance
Before making a crucial investment in a Pull Ring Cover Inspection Machine, we advise engineers and purchasing teams to meticulously confirm the following points. These checks are essential to ensure the machine you choose not only meets your speed demands but also integrates seamlessly with your line layout, defect thresholds, rejection timing, and long-term production control strategies.
These considerations help guarantee that your can cap inspection machine is perfectly tailored to your operational needs.
Conclusion
For high-throughput canned beverage lines, our Pull Ring Cover Inspection Machine stands as a critical post-seamer quality gate, meticulously checking for missing caps, cap angle deviation, and cap pop-up defects. By integrating comprehensive 360° inspection coverage, non-contact image acquisition, automatic defect archiving, and precise online rejection, our system significantly reduces personnel requirements and overall production costs. Ultimately, it boosts production efficiency and ensures superior product quality. The inspection results consistently meet the relevant technical standards for cap quality control established by manufacturers.
For a detailed specification review or to discuss your project needs, please do not hesitate to contact Jinan Maotong Inspection Equipment Co., Ltd.
FAQs
Where should the Pull Ring Cover Inspection Machine be installed?
We recommend installing it on a straight conveyor section approximately 1.5–2 meters downstream of the sealing machine.
What types of defects can this machine detect?
Our machine is adept at detecting missing caps, cap angle deviations of ≥5°, and cap pop-up deviations of ≥1 mm.
What is the maximum inspection speed of the Pull Ring Cover Inspection Machine model?
This model is engineered for high-speed online inspection, capable of processing up to 60,000 cans per hour.
Does the system feature automatic rejection of defective cans?
Absolutely. Upon detecting a defect, our control unit accurately tracks the corresponding can and issues a command to the rejector, ensuring the defective product is promptly removed from the line.
What factors might influence the machine's inspection accuracy?
The final inspection performance can be influenced by specific cap conditions and the degree of production-line jitter. Therefore, we emphasize reviewing these factors carefully during the configuration and commissioning phases to optimize accuracy.
