Outer Box Coding Inspection That Catches Carton Code Defects Early
Outer box coding inspection is often treated as a final 'spot check,' but on high-speed beverage carton lines, it truly shines as an inline quality gate—crucial before cartons move into bundling, boxing, and distribution. When a printed code is missing, blurred, incorrect, or shifted, the cost rarely stops at one carton; defects can quickly multiply downstream, leading to significant traceability issues and potential recalls. Our Outer Box Coding Inspection system brings advanced outer box coding inspection directly onto the conveyor, utilizing non-contact imaging, OCR-based judgment, and automatic removal of defective cartons at production speeds reaching 60 cartons per minute. This intelligent solution ensures that only perfectly coded products advance, safeguarding your brand reputation and operational efficiency.
Where Outer Box Coding Inspection Adds the Most Value
Outer box coding inspection becomes most valuable when positioned as an online control point rather than a manual recheck. On fast-moving carton packaging lines, producers typically evaluate an inspection station's ability to:
Indeed, outer box coding inspection also refines workflows: it significantly reduces the dependence on repetitive manual code checks and provides production teams with a clear, image-backed basis for crucial quality decisions.
What Our Outer Box Coding Inspection System Is Designed to Do
Our Outer Box Coding Inspection system is specifically engineered as a comprehensive carton inkjet printing quality inspection solution for carton packaging production lines. It supports cartons with various surface colors, ensuring adaptability across diverse product ranges. It is often discussed for beverage carton applications, where standardized label information and consistent coding quality are vital for compliance and traceability.
For those comparing options, two related product descriptions are commonly referenced: our Outer Box Coding Visual Inspection Machine and our coverage on the High-Speed Outer Box Coding Inspection Carton Inkjet Printer Enhances Packaging Quality Inspection & Production Efficiency. In both instances, the practical goal remains the same—to establish outer box coding inspection as a consistent, online decision point, boosting overall production quality.
Technical Parameters for Planning and Procurement
We use these parameters to specify the Outer Box Coding Inspection for carton line planning and procurement, ensuring it meets your operational demands.
| Parameter | Specification |
|---|---|
| Equipment Name | Carton Inkjet Printer |
| Model | Outer Box Coding Inspection |
| Applicable Production Speed | Up to 60 cartons per minute |
| Inspection Scope | Inkjet printing quality inspection |
| Rejection Mechanism | Automatically identifies and removes cartons with defective inkjet prints |
| Safety Rating | IP65 |
Because outer box coding inspection is only as stable as its operating environment, we typically assess the IP65 rating alongside the physical installation location and existing line conditions.
How the Outer Box Coding Inspection Workflow Runs Inline
Our Outer Box Coding Inspection system employs a Gigabit digital camera to capture high-resolution top-down or side-view images of carton codes. A precise positioning sensor records the carton ID and the current encoder signal, which then triggers image capture. This image data is sent to the processor for immediate analysis. The inspection results are displayed via the user-friendly HMI and transmitted to the control unit. When a defect is identified, the control unit promptly instructs the rejector to remove the corresponding carton from the line.
This sequence is key for outer box coding inspection; it links identification directly to action: the system doesn't merely 'flag' a defect—it facilitates automatic removal tied to the correct carton, ensuring efficient defect management.
For broader context on how producers apply OCR-based monitoring on beverage carton lines, our article Outer Box Coding Inspection Carton Inkjet Print Online Inspection System Improves Beverage Packaging Quality Control Efficiency describes the same direction of travel: automatic detection, judgment, and rejection of defective inkjet codes.
Full-Coverage Coding Defect Inspection Capabilities

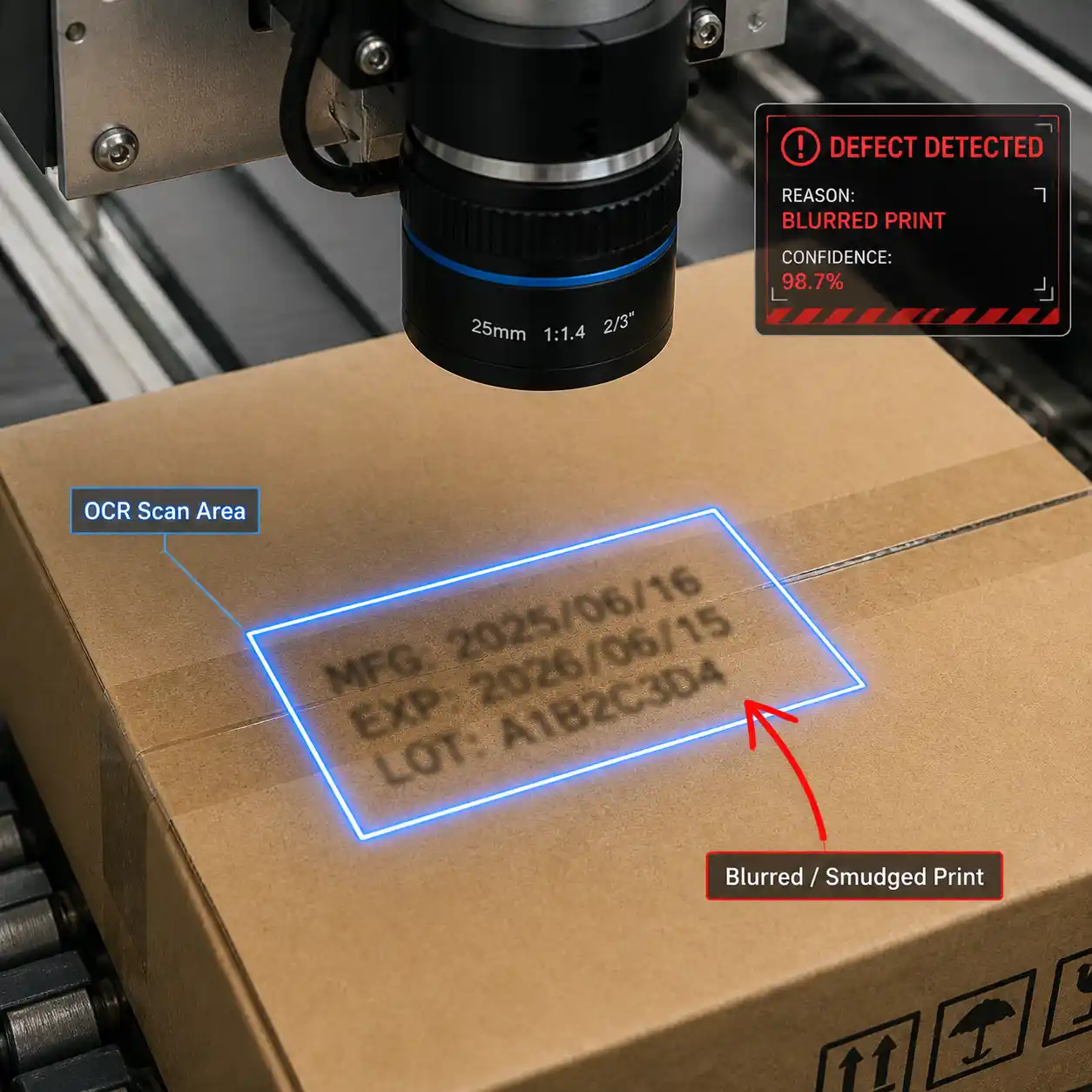

Our Outer Box Coding Inspection system identifies a range of common inkjet coding issues that impact carton traceability, even under demanding inspection conditions. This includes:
In our published accuracy table for inkjet printing inspection items, rejection rates are impressive: >99.99% for no coding, incorrect coding, position deviation, and duplicate printing; >99.8% for missing printing exceeding 30% of a single character; and >99.93% for fuzzy printing that is unreadable to the human eye. We maintain a low false kick rate of ≤0.03%, with these values representing theoretical experimental data. For procurement teams, these precise defect categories often form the core of any outer box coding inspection acceptance checklist, as they directly address the most common reasons cartons are held or reworked downstream.
Installation and Operation Details That Affect Results
Effective outer box coding inspection is highly dependent on optimal placement. For peak performance, we recommend installing the system 1.5–2 meters downstream from the inkjet printer, specifically on a straight section of the conveyor. This precise geometry ensures a stable imaging window for the coding area, which is vital for accurate detection.
From an operational standpoint, the Outer Box Coding Inspection includes:
Buyers typically assess these functions as part of a complete outer box coding inspection 'closed loop,' where detection, evidence (images), and removal are all managed within a single, integrated workflow.
Integrating with Broader Visual Inspection Needs
Many packaging facilities aim to standardize inspection across various stations to streamline quality control. Our Outer Box Coding Inspection system is often discussed as a vital component of an integrated inkjet printing and visual inspection approach, where clear acceptance criteria and reliable reject signals are fundamental expectations.
When expanding a line with multiple control points, buyers often consider the broader category of equipment, like a Carton Coding Inspection Machine, to understand how outer box coding inspection integrates into the overall packaging QA strategy. This ensures a cohesive and efficient quality assurance framework across the entire production line.
Ready to Enhance Your Packaging Quality?
Investing in advanced outer box coding inspection is a strategic move for any beverage packaging producer committed to quality and efficiency. Our Outer Box Coding Inspection system offers a robust, high-speed, and reliable solution to prevent coding defects from impacting your production line and brand reputation. We are dedicated to providing intelligent visual inspection solutions that meet the stringent demands of modern manufacturing.
For a comprehensive review of equipment details, we recommend starting with the product page for our Outer Box Coding Visual Inspection Machine.
