Juice Box Quality Inspection

I. Equipment Introduction

1. Equipment Purpose:

Online inspection of straw attachment quality on paper packaging production lines, automatically rejecting defective straws.

2. Equipment Features:

◆ Non-contact, online inspection, no damage to the product.

◆ High inspection speed, up to 24,000 packages per hour.

◆ Flexible human-machine interface with multi-level user access settings.

◆ Equipped with an industrial-grade cooling system to prevent system freezes and malfunctions caused by extended summer operation.

◆ Customizable functions based on actual production conditions.

◆ Automatically stores photos of defective straws daily, with customizable storage time. 24-hour remote service (equipment remotely controlled)

◆ Continuous rejection and shutdown (automatically stops the line after a certain number of defective products are rejected)

◆ Zero-delay straw detection reduces the impact of straw color and packaging material color on straw detection

II. Detection Functions

• Presence of straws

• Position offset

• Excessive straw angle

III. Installation Location

On-site installation location: 0.5-1.5m straight path behind the straw applicator.

IV. Detection Principle

A Gigabit Ethernet digital camera captures images of the straws in the paper package. The captured images are digitally analyzed, and paper packages with defective straws are automatically rejected online.

The paper package passes the positioning sensor, which detects the arrival of the Tetra Pak package. The control unit records the package identification number and the current encoder signal. The positioning sensor triggers the digital camera to capture an image of the straws in the paper package and transmits the image to the image processor via the network. The image processor processes and analyzes the received image and transmits the results to both the human-machine interface for dynamic display and the control unit. After receiving the signal indicating a failed straw, the control unit notifies the rejector to remove the paper packages with the corresponding identification number.

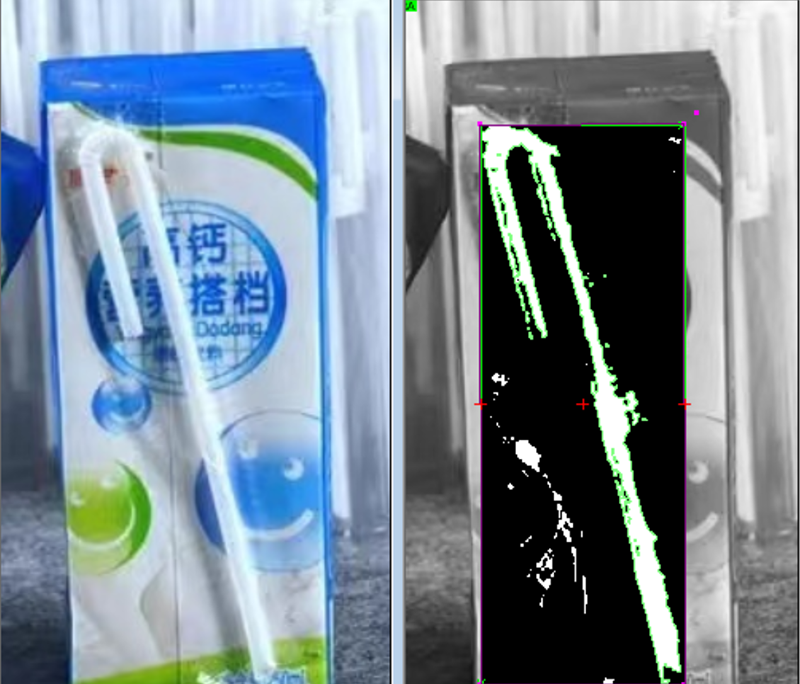

Sample image processing results: original image on left, processed image on right.

V. Equipment Configuration Details and Inspection Accuracy

(I) Equipment Detail

A. Technical Parameters

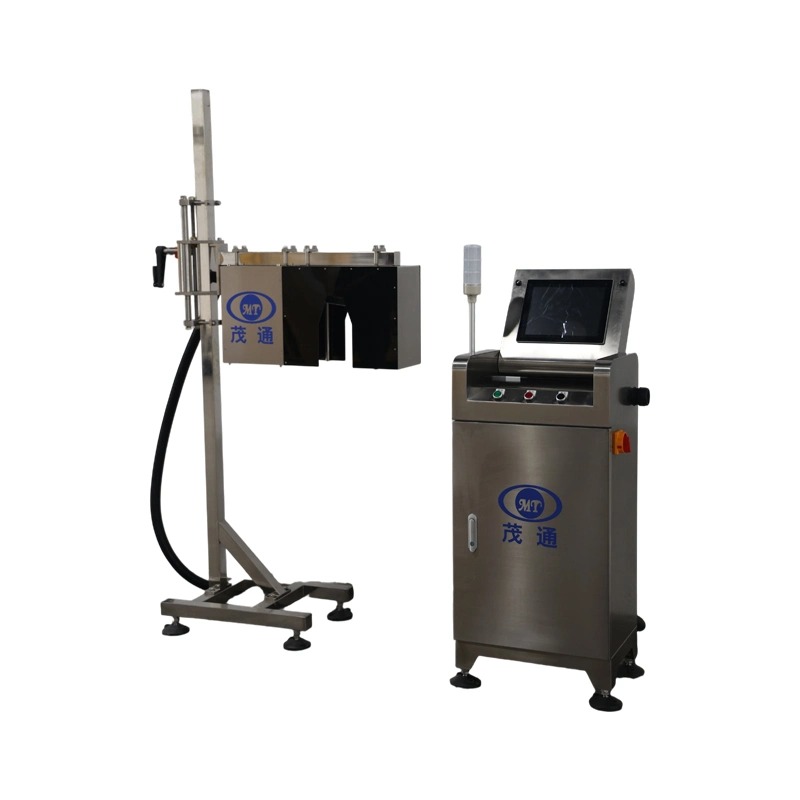

Equipment Name: Straw Inspection Machine

Model Name: MT-LL-XG-C1

Applicable Production Speed: 24,000 packages/hour

Inspection Area: Straw Inspection

Rejection Method: Automatically rejects paper packages with defective straws detected by the inspection unit online.

Safety Protection Rating: IP65

B. Main Applications

Widely used in Tetra Pak beverage production lines, inspecting and automatically rejecting paper packages with failed straws.

C. Technical Features

1. Reduces manpower and production costs.

2. Improves production efficiency and product quality.

3. The straw inspection machine's inspection results meet the manufacturer's relevant technical standards.

D. Detection accuracy
