Liquid Level Inspection Machine Keeps Fast Lines Accurate
A Liquid Level Inspection Machine is no longer a secondary quality-control option for fast beverage, can, PET, PE, PP, glass, ceramic, aluminum, and tinplate packaging lines. When filling speed rises, even a slight level deviation can create significant waste, demand rework, lead to customer complaints, or pose downstream packaging risks. Our MT-HFX-06 Liquid Level Inspection System is specifically engineered for real-time product liquid level detection and precise online rejection of nonconforming containers. With its high-performance configuration, it's capable of handling an impressive 72,000 bottles/cans per hour, ensuring consistent quality and operational efficiency.
What the Liquid Fill Level Inspection Built to Inspect

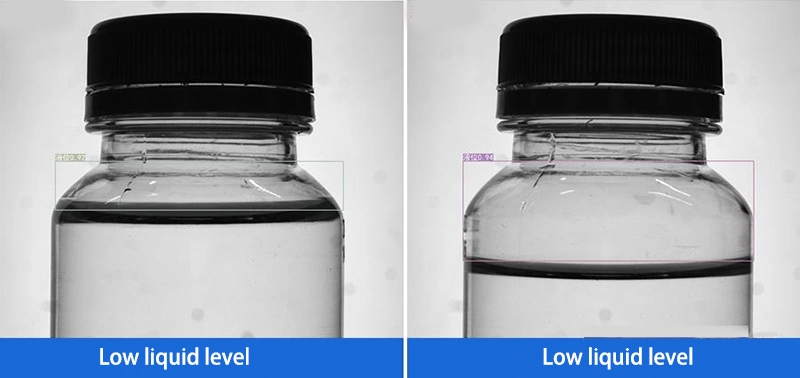

The Liquid Level Inspection Machine primarily focuses on online fill-level control, addressing a critical need in modern manufacturing. It supports low liquid level detection as a standard function, which is vital for preventing under-filled products that could lead to consumer dissatisfaction or legal non-compliance. Furthermore, it offers high liquid level detection as an auxiliary function, important for avoiding overfilling, which can cause spillage, packaging damage, or material waste. For production teams evaluating an inline liquid level inspection solution, the core value of the Liquid Fill Level Inspection is clear: it accurately identifies and removes containers that fail to meet preset liquid level standards, preserving product integrity and brand reputation.
This system is designed to be highly versatile, accommodating a wide array of container types and sizes, making it an ideal choice for diverse production environments. Our Liquid Fill Level Inspection model handles:
| Item | Specification |
|---|---|
| Equipment model | MT-HFX-06 |
| Project scope | Real-time liquid level detection with online rejection |
| Maximum capacity | Up to 72,000 bottles/cans per hour, high-performance model |
| Compatible materials | Aluminum, tinplate, PE, PET, PP, ceramics, glass |
| Product range | 200–2000 ml |
| Diameter range | 30–90 mm |
| Height range | 50–200 mm |
This broad compatibility ensures that whether you're packaging beverages in cans or liquids in various plastic or glass bottles, the MT-HFX-06 delivers consistent, reliable performance.
How the Detection Principle Works

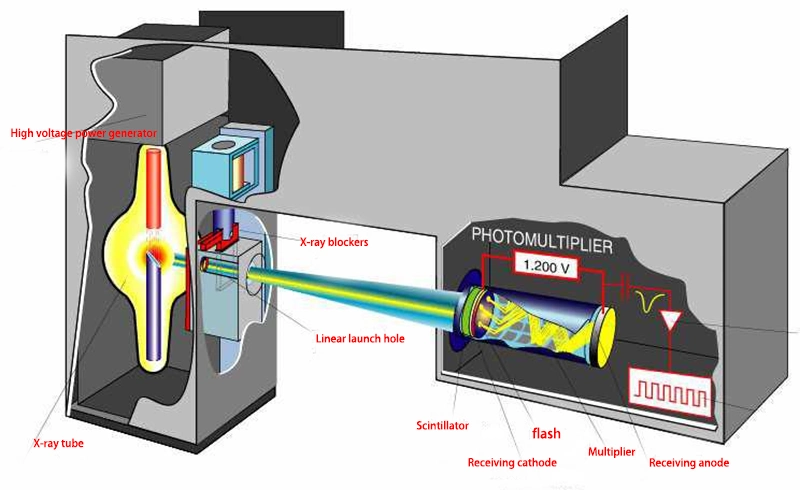

Our Liquid Level Inspection Machine leverages the advanced principle of X-ray penetration for highly accurate measurements. As containers pass through the inspection zone, X-rays penetrate the product. Containers with varying liquid levels create distinct projection patterns at the receiving end of the system. These patterns are then converted into measurable signal differences. The system meticulously compares these signals against user-defined standard parameters, which are set to precise tolerances. When a product's signal falls outside these acceptable limits, it is instantly flagged as nonconforming, and the inspection system automatically triggers a rejection mechanism.
This non-contact approach is particularly beneficial for high-speed production lines, as containers do not need to be stopped, opened, or physically handled, preventing any disruption to the flow. A significant advantage of our system is its capability to inspect various liquid types, including transparent, foamy, and opaque products, which traditional optical sensors often struggle with. Moreover, the MT-HFX-06 uses a soft ray design without any radioisotope sources, ensuring safe and reliable ray protection for both operators and the environment, a crucial factor for modern manufacturing facilities.
Seamless Integration on Filling Lines

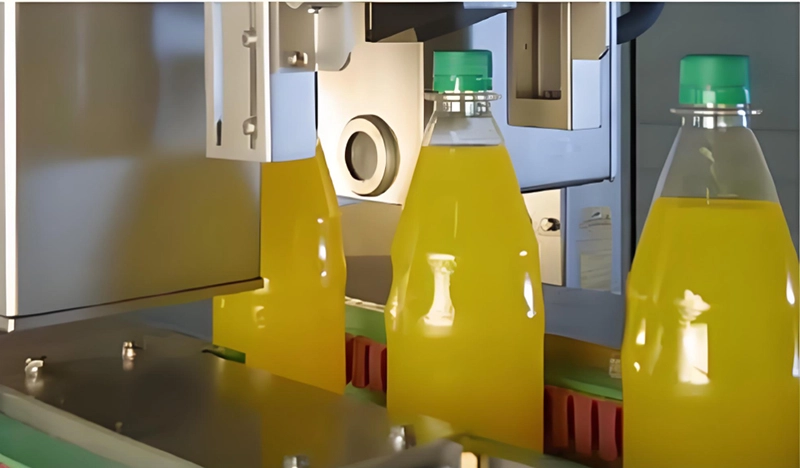

The MT-HFX-06 Liquid Level Inspection Machine is designed for straightforward and efficient integration into your existing production setup. It's typically positioned directly after the filling machine, offering flexibility to be installed either before or after the inkjet printer, depending on your specific line configuration. For optimal performance, the installation site should include a single-row conveyor chain with at least 2 meters of straight conveyor length, providing ample space for accurate inspection and rejection processes. A carefully positioned guardrail opening, no more than 15 cm, is used to facilitate the smooth exit of rejected products from the conveyor, minimizing line disruptions.

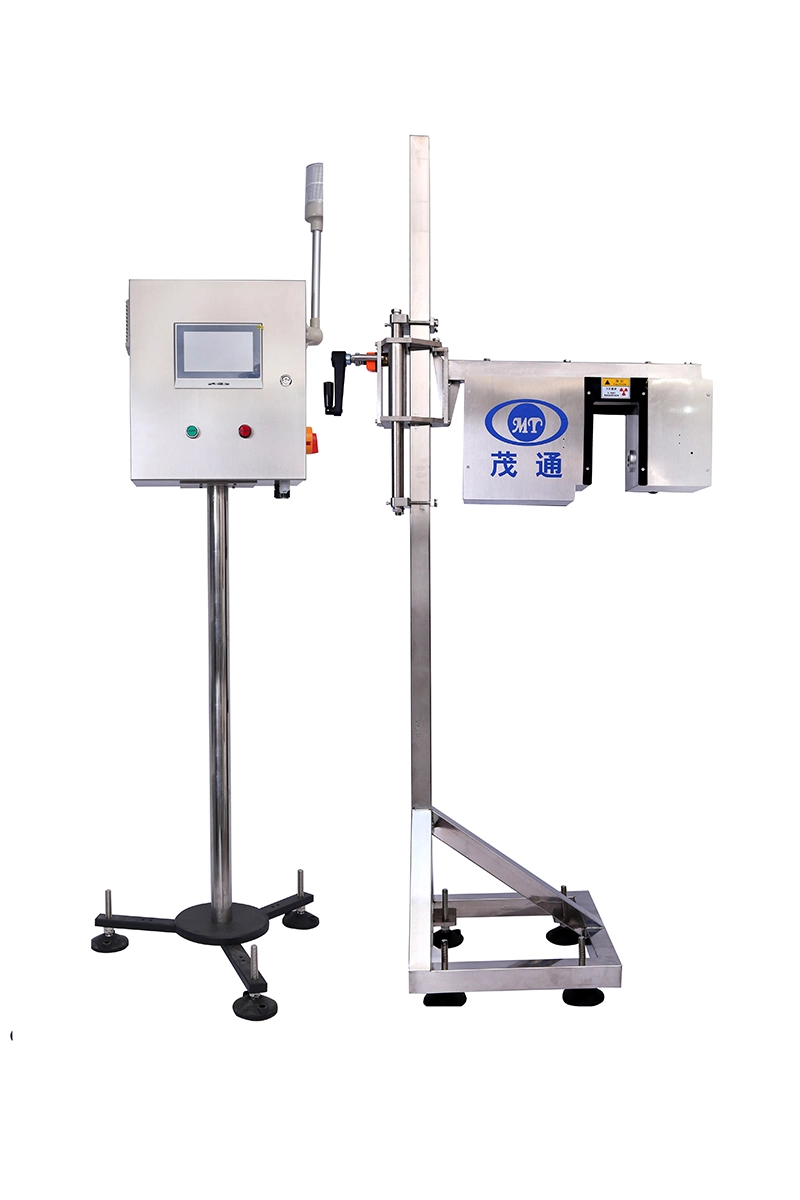

From a macro perspective, the system primarily consists of an inspection unit, a rejection unit, a power distribution cabinet, a human-machine interface (HMI), electronic modules, and robust mechanical assemblies. Each component is engineered to work in harmony, ensuring reliable operation. For handling rejected products, we recommend that purchasers prepare a sturdy, rigid collection container to be placed at the designated rejection point. Our installation process is streamlined, aiming to complete full setup and commissioning within just 24 hours, which means minimal downtime for your production line.
Operating and Site Requirements
Before deploying a Liquid Level Inspection Machine, it's crucial for buyers to confirm specific plant conditions and available utilities to ensure optimal performance and longevity. The MT-HFX-06 is engineered for operation at 5–3000 meters above sea level, accommodating a broad range of geographical locations. It operates best within an ambient temperature range of 5°C–40°C and a relative humidity of 50%–65% RH. We emphasize that factory floor flatness, load-bearing capacity, and storage conditions must comply with all relevant national standards to guarantee stable and proper equipment operation.
To help you plan, here are the essential requirements:
| Requirement | Value |
|---|---|
| Power supply | 220V, 50Hz, single-phase, customer-provided |
| Total power consumption | Approx. 1.0 kW |
| Control voltage | 24 VDC |
| Compressed air | 4–12 Pa, pipeline provided by customer |
| Conveyor speed | ≤1.6 m/s |
| Dynamic resolution | ±1.5 mm, subject to foam or shaking effects |
| Static resolution | ±1 mm |
| Rejection accuracy | ≥99.99% at 400 containers/minute |
Customers are responsible for providing the main power supply and compressed air line connections. Special voltage requirements should be communicated in advance, as they might affect equipment specifications, delivery timelines, and pricing.
Key Features Buyers Should Check
A truly effective Liquid Level Inspection Machine must seamlessly integrate with real-world production behaviors, not just boast impressive catalog speeds. Our MT-HFX-06 automatically adapts to varying production line speeds, enabling continuous dynamic inspection without manual adjustments. This intelligent adaptation ensures consistent accuracy even as line speeds fluctuate.
Crucially, our encoder-based counting system helps maintain exceptional rejection accuracy, even if the production line temporarily stops or its speed changes. This means fewer false rejections and more reliable quality control. To further enhance operational stability, independent inspection and control cabinets are employed, significantly reducing the risk of electromagnetic interference between electronic components. The robust stainless steel housing, coupled with a sealed mainframe design, makes the system highly resistant to fog, condensation, and water droplets, ensuring reliable performance even in harsh production environments.
Other vital features include advanced hardware circuit design and our proprietary self-developed inspection software, both optimized for high-speed processing, reaching up to 72,000 BPH. An embedded operating system guarantees long-term stable operation, while integrated audible and visual alarms provide immediate notification of unqualified containers, which are then automatically rejected. Additionally, the system includes an automatic X-ray blocking mechanism that deactivates emission when idle, enhancing safety and conserving energy. These thoughtful details make the MT-HFX-06 an indispensable Liquid Level Inspection Machine for buyers who demand precise, non-contact inline inspection without interrupting continuous production.
FAQs
What types of containers can this Liquid Level Inspection Machine handle?
Our MT-HFX-06 system is highly versatile and specifically designed to inspect a wide range of container materials, including aluminum, tinplate, PE, PET, PP, ceramic, and glass. It also accommodates products within a stated size range: volume from 200–2000 ml, diameter 30–90 mm, and height 50–200 mm.
What is the maximum production capacity of the machine?
The high-performance model of our liquid level inspection machine boasts an impressive maximum throughput of up to 72,000 bottles/cans per hour, ensuring efficient quality control even on the fastest production lines.
Where is the machine installed on a production line?
The machine is typically installed after the filling machine. You have the flexibility to position it either before or after the inkjet printer, depending on your specific line layout. It requires a single-row conveyor with at least 2 meters of straight length for optimal operation.
Does the system inspect for both high and low liquid levels?
Yes, absolutely. The MT-HFX-06 is equipped to perform both. Low liquid level detection is a standard, primary function to prevent under-filled products, while high liquid level detection is an auxiliary function, crucial for avoiding overfilling and potential product waste or packaging issues.
What key factors should buyers confirm before installation?
Before installation, buyers should confirm several critical factors: the conveyor layout and required straight length, the power supply specifications, compressed air availability and pressure, the ambient operating temperature and humidity, the altitude of the facility, and ensuring adequate space for the rejected product collection container. Thorough preparation ensures a smooth and rapid installation process.
